0515G006B

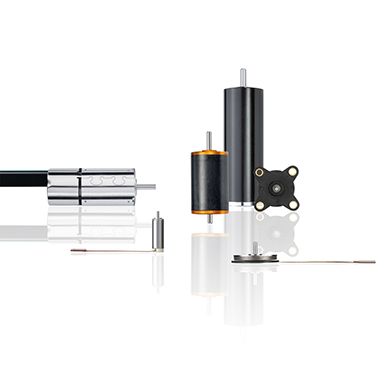

FAULHABER® smoovy® Technology series 0515_B, 5 mm dia. brushless DC micro motor, 6.0V coil and 0.8 mm dia. plain shaft.
SKU:
0515G006B
Price per unit:
$164.70
| Motor | |
|---|---|
| Datasheets |
|
Configured Product Specifications
| Motor Series: | 0515_B |
|---|---|
| Motor Winding: | 6V |
| Overall Diameter: | 5 mm |
| Overall Length: | 14.6 mm |
| Overall Weight: | 0.003 lbs |
| Estimated Lead Time: | 20 Business Days |
Additional Pricing options
- Buy 5 for $131.10 each and save 20%
- Buy 10 for $101.20 each and save 39%
- Buy 25 for $89.90 each and save 45%
Please call or contact for pricing of higher volumes
ADDITIONAL PRODUCT DETAILS & SPECS
This configuration & part number includes the following:
| Motor Type: | Rotary |
|---|---|
| Motor Technology: | Brushless DC |
| Rotor Inertia: | 0.0 gcm2 |
| Friction Torque/ Residual Torque: | 0.0 mNm |
| Dynamic friction: | 0.000 mNm/rpm |
| Mechanical Time constant: | 2.4 ms |
| Max Angular acceleration: | 1983 rad/s2 |
| Torque constant rotary: | 1.217 mNm/A |
| Back EMF constant rotary: | 0.121 mV/rpm |
| Terminal/Phase Resistance: | 16.1 Ω |
| Terminal Inductance: | 140 μH |
| Gearhead Technology: | No Gearhead |
|---|---|
| Bearing Type: | Sintered Bearing |
