1307C006BH 6:1

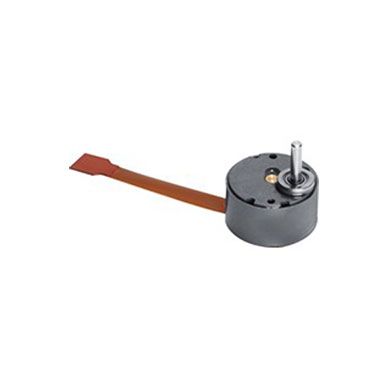

FAULHABER® series 1307_BH, 13 mm dia. brushless flat DC gearmotor, 6.0V coil, 6:1 reduction ratio and 1.5 mm dia. output shaft.
SKU:
1307C006BH 6:1
Price per unit:
$0.00
| Motor | Gearhead | |
|---|---|---|
| Datasheets |
|
|
Configured Product Specifications
| Motor Series: | 1307_BH |
|---|---|
| Motor Winding: | 6V |
| Gearhead Series: | 1307INTGH |
| Gearhead Ratio: | 6:1 |
| Overall Diameter: | 12.5 mm |
| Overall Length: | 14.1 mm |
| Overall Weight: | 0.005 lbs |
ADDITIONAL PRODUCT DETAILS & SPECS
This configuration & part number includes the following:
| Motor Type: | Rotary |
|---|---|
| Motor Technology: | Brushless DC |
| Rotor Inertia: | 0.2 gcm2 |
| Mechanical Time constant: | 397 ms |
| Max Angular acceleration: | 10 rad/s2 |
| Torque constant rotary: | 1.618 mNm/A |
| Back EMF constant rotary: | 0.169 mV/rpm |
| Terminal/Phase Resistance: | 70 Ω |
| Terminal Inductance: | 58 μH |
| Gearhead Ratio: | 6:1 |
|---|---|
| Gearhead Technology: | Planetary |
| Bearing Type: | Combo Ball Bearings & Sintered Bearings |
| Continuous Torque Max: | 0.8 mNm |
| Intermittent Torque Max: | 1.5 mNm |
| Recommended input speed Max: | 10000 rpm |
| Gearhead Intermittent Input Speed Max: | 20000 rpm |
| Radial Shaft Load Max: | 0.5 N |
| Axial Shaft Load Max: | 0.1 N |
| Operating Temp, Max: | 85 °C |
| Efficiency: | 88 % |
| Direction of Rotation: | CW |
`
