2622S012B 112:1

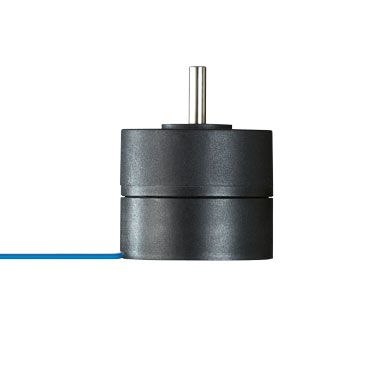

FAULHABER® series 2622_B, 26 mm dia. brushless flat DC gearmotor, 12V coil, 112:1 reduction ratio and 3.0 mm dia. output shaft.
SKU:
2622S012B 112:1
Price per unit:
$238.20
| Motor | Gearhead | |
|---|---|---|
| Datasheets |
|
|
Configured Product Specifications
| Motor Series: | 2622_B |
|---|---|
| Motor Winding: | 12V |
| Gearhead Series: | 2622INTGH |
| Gearhead Ratio: | 112:1 |
| Overall Diameter: | 26 mm |
| Overall Length: | 44 mm |
| Overall Weight: | 0.06 lbs |
Additional Pricing options
- Buy 5 for $189.60 each and save 20%
- Buy 10 for $146.30 each and save 39%
- Buy 25 for $130.00 each and save 45%
Please call or contact for pricing of higher volumes
ADDITIONAL PRODUCT DETAILS & SPECS
This configuration & part number includes the following:
| Motor Type: | Rotary |
|---|---|
| Motor Technology: | Brushless DC |
| Rotor Inertia: | 8.1 gcm2 |
| Mechanical Time constant: | 70 ms |
| Max Angular acceleration: | 9.5 rad/s2 |
| Torque constant rotary: | 18.1 mNm/A |
| Back EMF constant rotary: | 1.895 mV/rpm |
| Terminal/Phase Resistance: | 28.2 Ω |
| Terminal Inductance: | 1940 μH |
| Gearhead Ratio: | 112:1 |
|---|---|
| Gearhead Technology: | Planetary |
| Bearing Type: | Ball Bearing |
| Continuous Torque Max: | 93 mNm |
| Intermittent Torque Max: | 180 mNm |
| Recommended input speed Max: | 5000 rpm |
| Gearhead Intermittent Input Speed Max: | 10000 rpm |
| Radial Shaft Load Max: | 15 N |
| Axial Shaft Load Max: | 5 N |
| Operating Temp, Min: | -25 °C |
| Operating Temp, Max: | 80 °C |
| Efficiency: | 59 % |
| Direction of Rotation: | CCW |
`
