2668W024CR

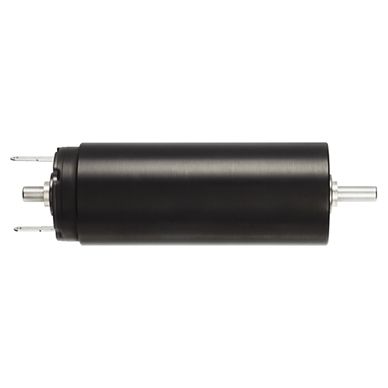

FAULHABER® Coreless Technology series 2668_CR, 26 mm dia. brush DC micro motor, 24V coil, graphite commutation and 4.0 mm dia. plain shaft.
SKU:
2668W024CR
Price per unit:
$428.40
| Motor | |
|---|---|
| Datasheets |
|
Configured Product Specifications
| Motor Series: | 2668_CR |
|---|---|
| Motor Winding: | 24V |
| Overall Diameter: | 26 mm |
| Overall Length: | 68 mm |
| Overall Weight: | 0.417 lbs |
Additional Pricing options
- Buy 5 for $340.80 each and save 20%
- Buy 10 for $263.00 each and save 39%
- Buy 25 for $233.70 each and save 45%
Please call or contact for pricing of higher volumes
ADDITIONAL PRODUCT DETAILS & SPECS
This configuration & part number includes the following:
| Motor Type: | Rotary |
|---|---|
| Motor Technology: | Coreless DC |
| Rotor Inertia: | 25 gcm2 |
| Friction Torque/ Residual Torque: | 2.2 mNm |
| Mechanical Time constant: | 3.1 ms |
| Max Angular acceleration: | 263 rad/s2 |
| Torque constant rotary: | 28.9 mNm/A |
| Back EMF constant rotary: | 3.02 mV/rpm |
| Terminal/Phase Resistance: | 1.03 Ω |
| Terminal Inductance: | 158 μH |
| Gearhead Technology: | No Gearhead |
|---|---|
| Bearing Type: | Ball Bearings, Preloaded |
`
