3272G048CR

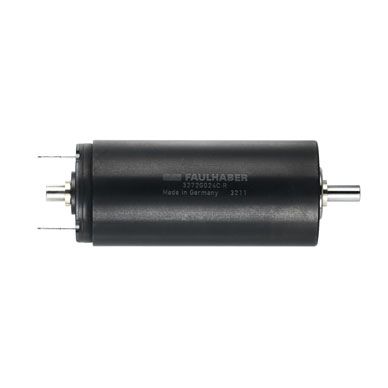

FAULHABER® Coreless Technology series 3272_CR, 32 mm dia. brush DC micro motor, 48V coil, graphite commutation and 5.0 mm dia. plain shaft.
SKU:
3272G048CR
Price per unit:
$465.40
| Motor | |
|---|---|
| Datasheets |
|
Configured Product Specifications
| Motor Series: | 3272_CR |
|---|---|
| Motor Winding: | 48V |
| Overall Diameter: | 32 mm |
| Overall Length: | 72.0 mm |
| Overall Weight: | 0.687 lbs |
| Estimated Lead Time: | 3 Business Days |
Additional Pricing options
- Buy 5 for $370.20 each and save 20%
- Buy 10 for $285.70 each and save 39%
- Buy 25 for $253.90 each and save 45%
Please call or contact for pricing of higher volumes
ADDITIONAL PRODUCT DETAILS & SPECS
This configuration & part number includes the following:
| Motor Type: | Rotary |
|---|---|
| Motor Technology: | Coreless DC |
| Rotor Inertia: | 60.0 gcm2 |
| Friction Torque/ Residual Torque: | 3.9 mNm |
| Dynamic friction: | 0.000 mNm/rpm |
| Mechanical Time constant: | 2.9 ms |
| Max Angular acceleration: | 196 rad/s2 |
| Torque constant rotary: | 83.3 mNm/A |
| Back EMF constant rotary: | 8.7 mV/rpm |
| Terminal/Phase Resistance: | 3.35 Ω |
| Terminal Inductance: | 740 μH |
| Gearhead Technology: | No Gearhead |
|---|---|
| Bearing Type: | Ball Bearings, Preloaded |
