3274G024BP4

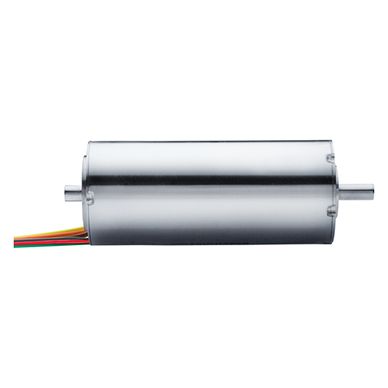

FAULHABER® 4 Pole Technology series 3274_BP4, 32 mm dia. brushless DC micro motor, 24V coil and 5.0 mm dia. plain shaft.
SKU:
3274G024BP4
Price per unit:
$1,023.20
| Motor | |
|---|---|
| Datasheets |
|
Configured Product Specifications
| Motor Series: | 3274_BP4 |
|---|---|
| Motor Winding: | 24V |
| Overall Diameter: | 32 mm |
| Overall Length: | 74 mm |
| Overall Weight: | 0.705 lbs |
Additional Pricing options
- Buy 5 for $789.40 each and save 23%
- Buy 25 for $701.60 each and save 31%
Please call or contact for pricing of higher volumes
ADDITIONAL PRODUCT DETAILS & SPECS
This configuration & part number includes the following:
| Motor Type: | Rotary |
|---|---|
| Motor Technology: | Brushless DC |
| Rotor Inertia: | 48 gcm2 |
| Friction Torque/ Residual Torque: | 2.9 mNm |
| Dynamic friction: | 0.001 mNm/rpm |
| Mechanical Time constant: | 1.5 ms |
| Max Angular acceleration: | 562 rad/s2 |
| Torque constant rotary: | 28.4 mNm/A |
| Back EMF constant rotary: | 2.97 mV/rpm |
| Terminal/Phase Resistance: | 0.25 Ω |
| Terminal Inductance: | 60 μH |
| Gearhead Technology: | No Gearhead |
|---|---|
| Bearing Type: | Ball Bearings, Preloaded |
`
