AM1524SB045004

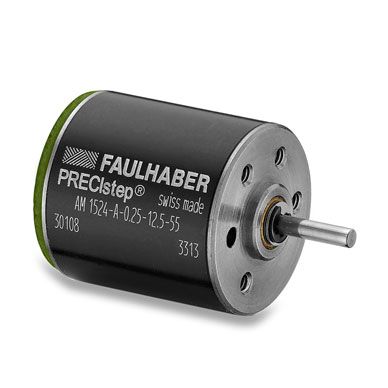

FAULHABER® PRECIstep® Technology series AM1524, 15 mm dia. 2 phase DC stepper motor, 2.0V coil with sleeve bearings and 7.75 mm long plain shaft.
SKU:
AM1524SB045004
Price per unit:
$156.96
| Motor | |
|---|---|
| Datasheets |
|
Configured Product Specifications
| Motor Series: | AM1524 |
|---|---|
| Motor Winding: | 2V |
| Overall Diameter: | 15 mm |
| Overall Length: | 16.4 mm |
| Overall Weight: | 0.026 lbs |
Additional Pricing options
- Buy 5 for $146.50 each and save 7%
- Buy 10 for $129.25 each and save 18%
- Buy 25 for $122.08 each and save 22%
Please call or contact for pricing of higher volumes
ADDITIONAL PRODUCT DETAILS & SPECS
This configuration & part number includes the following:
| Motor Type: | Rotary |
|---|---|
| Motor Technology: | Stepper |
| Rotor Inertia: | 0.4 gcm2 |
| Friction Torque/ Residual Torque: | 0.9 mNm |
| Torque constant rotary: | 10 mNm/A |
| Back EMF constant rotary: | 2.4 mV/rpm |
| Terminal/Phase Resistance: | 3.6 Ω |
| Terminal Inductance: | 1900 μH |
| Stepper Drive Voltage, Min: | 10 V |
| Gearhead Technology: | No Gearhead |
|---|---|
| Bearing Type: | Sintered Bearing |
`
