AM22242R050010

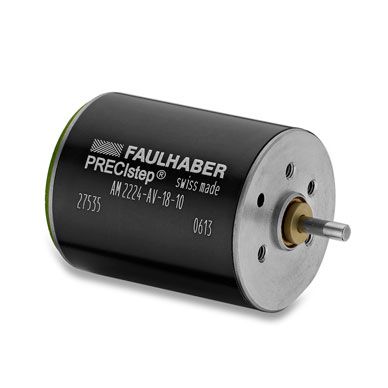

FAULHABER® PRECIstep® Technology series AM2224, 22 mm dia. 2 phase DC stepper motor, 3.0V coil with two ball bearings and 2.0 mm dia. x 8.1 mm long... More Details
SKU:
AM22242R050010
Price per unit:
$219.82
| Motor | |
|---|---|
| Datasheets |
|
Configured Product Specifications
| Motor Series: | AM2224 |
|---|---|
| Motor Winding: | 3V |
| Overall Diameter: | 22 mm |
| Overall Length: | 27.7 mm |
| Overall Weight: | 0.095 lbs |
Additional Pricing options
- Buy 5 for $206.40 each and save 6%
- Buy 10 for $184.29 each and save 16%
- Buy 25 for $175.07 each and save 20%
Please call or contact for pricing of higher volumes
ADDITIONAL PRODUCT DETAILS & SPECS
This configuration & part number includes the following:
| Motor Type: | Rotary |
|---|---|
| Motor Technology: | Stepper |
| Rotor Inertia: | 2.5 gcm2 |
| Friction Torque/ Residual Torque: | 2 mNm |
| Torque constant rotary: | 37 mNm/A |
| Back EMF constant rotary: | 8.3 mV/rpm |
| Terminal/Phase Resistance: | 4.8 Ω |
| Terminal Inductance: | 4300 μH |
| Stepper Drive Voltage, Min: | 24 V |
| Gearhead Technology: | No Gearhead |
|---|---|
| Bearing Type: | Sintered Bearing |
`
