DM0620SB013011

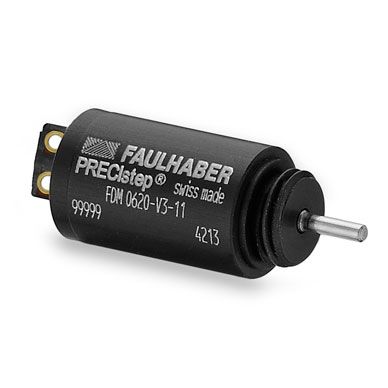

FAULHABER® PRECIstep® Technology series DM0620, 6 mm dia. 2 phase disc magnet DC stepper motor, 2.0V coil with sleeve bearings and 1.0 mm plain... More Details
SKU:
DM0620SB013011
Price per unit:
$198.85
| Motor | |
|---|---|
| Datasheets |
|
Configured Product Specifications
| Motor Series: | DM0620 |
|---|---|
| Motor Winding: | 2V |
| Overall Diameter: | 6 mm |
| Overall Length: | 9.5 mm |
| Overall Weight: | 0.002 lbs |
Additional Pricing options
- Buy 5 for $185.70 each and save 7%
- Buy 10 for $164.02 each and save 18%
- Buy 25 for $154.98 each and save 22%
Please call or contact for pricing of higher volumes
ADDITIONAL PRODUCT DETAILS & SPECS
This configuration & part number includes the following:
| Motor Type: | Rotary |
|---|---|
| Motor Technology: | Stepper |
| Friction Torque/ Residual Torque: | 0.1 mNm |
| Torque constant rotary: | 0.06 mNm/A |
| Back EMF constant rotary: | 0.53 mV/rpm |
| Terminal/Phase Resistance: | 13.6 Ω |
| Terminal Inductance: | 2 μH |
| Stepper Drive Voltage, Min: | 5 V |
| Gearhead Technology: | No Gearhead |
|---|---|
| Bearing Type: | Sintered Bearing |
`
