LM0830-040-01

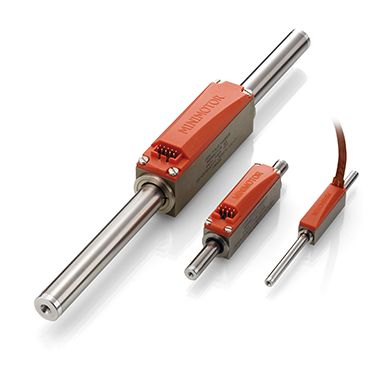

FAULHABER® QUICKSHAFT® Technology series LM0830, 8 mm wide linear brushless DC micro motor, 40mm stroke length with integrated analog hall sensors.
SKU:
LM0830-040-01
Price per unit:
$566.52
Configured Product Specifications
| Motor Series: | LM0830 |
|---|---|
| Motor Winding: | 50V |
| Overall Diameter: | 8 mm |
| Overall Length: | 30 mm |
| Overall Weight: | 0.038 lbs |
Additional Pricing options
- Buy 5 for $515.02 each and save 9%
- Buy 10 for $472.10 each and save 17%
- Buy 25 for $419.64 each and save 26%
Please call or contact for pricing of higher volumes
ADDITIONAL PRODUCT DETAILS & SPECS
This configuration & part number includes the following:
| Motor Type: | Linear |
|---|---|
| Motor Technology: | Linear Brushless DC |
| Friction Torque/ Residual Torque: | 0.1 mNm |
| Dynamic friction: | 0.001 mNm/rpm |
| Max Angular acceleration: | 147800 rad/s2 |
| Torque constant rotary: | 1.94 mNm/A |
| Back EMF constant rotary: | 1.58 mV/rpm |
| Terminal/Phase Resistance: | 7.37 Ω |
| Terminal Inductance: | 117 μH |
| Gearhead Technology: | No Gearhead |
|---|---|
| Bearing Type: | Polymer Sleeves |
`
