LM1483-020-11-C

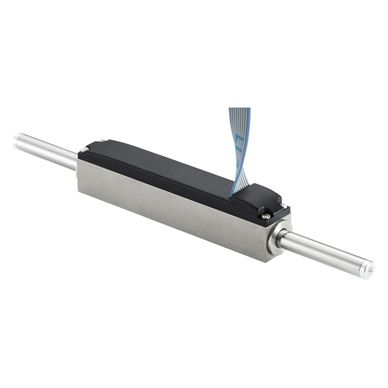

FAULHABER® QUICKSHAFT® Technology series LM1483, 14 mm wide linear brushless DC micro motor, 20mm stroke length with integrated analog hall sensors... More Details
SKU:
LM1483-020-11-C
Price per unit:
$859.07
| Motor | |
|---|---|
| Datasheets |
|
Configured Product Specifications
| Motor Series: | LM1483 |
|---|---|
| Motor Winding: | 75V |
| Overall Diameter: | 14 mm |
| Overall Length: | 82.9 mm |
| Overall Weight: | 0.258 lbs |
Additional Pricing options
- Buy 5 for $780.98 each and save 9%
- Buy 10 for $715.90 each and save 17%
- Buy 25 for $636.35 each and save 26%
Please call or contact for pricing of higher volumes
ADDITIONAL PRODUCT DETAILS & SPECS
This configuration & part number includes the following:
| Motor Type: | Linear |
|---|---|
| Motor Technology: | Linear Brushless DC |
| Dynamic friction: | 0.001 mNm/rpm |
| Max Angular acceleration: | 220700 rad/s2 |
| Torque constant rotary: | 12.44 mNm/A |
| Back EMF constant rotary: | 10.16 mV/rpm |
| Terminal/Phase Resistance: | 26.3 Ω |
| Terminal Inductance: | 1649 μH |
| Gearhead Technology: | No Gearhead |
|---|---|
| Bearing Type: | Polymer Sleeves |
`
