AM1524SB045004+17/1 3.33:1+HEAM152412+MG12

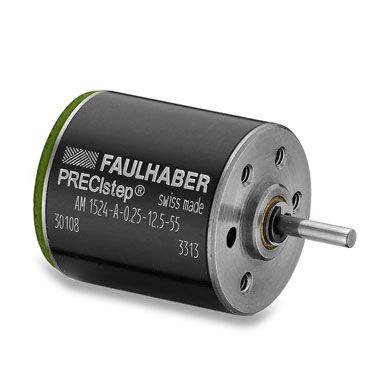

FAULHABER® PRECIstep® Technology series AM1524, 15 mm dia. 2 phase DC stepper motor, 2.0V coil with sleeve bearings with FAULHABER® series 17/1,... More Details
SKU:
AM1524SB045004+17/1 3.33:1+HEAM152412+MG12
Price per unit:
$343.47
| Motor | Gearhead | Encoder | |
|---|---|---|---|
| Datasheets |
|
|
|
Configured Product Specifications
| Motor Series: | AM1524 |
|---|---|
| Motor Winding: | 2V |
| Gearhead Series: | 17/1 |
| Gearhead Ratio: | 3.33:1 |
| Encoder Technology: | Magnetic, 2 Channel |
| Encoder Resolution: | 12 |
| Overall Diameter: | 17 mm |
| Overall Length: | 46.5 mm |
| Overall Weight: | 0.11 lbs |
Additional Pricing options
- Buy 5 for $312.34 each and save 9%
- Buy 10 for $283.47 each and save 17%
- Buy 25 for $259.71 each and save 24%
Please call or contact for pricing of higher volumes
ADDITIONAL PRODUCT DETAILS & SPECS
This configuration & part number includes the following:
| Motor Type: | Rotary |
|---|---|
| Motor Technology: | Stepper |
| Rotor Inertia: | 0.4 gcm2 |
| Friction Torque/ Residual Torque: | 0.9 mNm |
| Torque constant rotary: | 10 mNm/A |
| Back EMF constant rotary: | 2.4 mV/rpm |
| Terminal/Phase Resistance: | 3.6 Ω |
| Terminal Inductance: | 1900 μH |
| Stepper Drive Voltage, Min: | 10 V |
| Gearhead Ratio: | 3.33:1 |
|---|---|
| Gearhead Technology: | Planetary |
| Bearing Type: | Sintered Bearing |
| Continuous Torque Max: | 550 mNm |
| Intermittent Torque Max: | 800 mNm |
| Recommended input speed Max: | 8000 rpm |
| Gearhead Intermittent Input Speed Max: | 24000 rpm |
| Radial Shaft Load Max: | 5 N |
| Axial Shaft Load Max: | 3 N |
| Operating Temp, Min: | -30 °C |
| Operating Temp, Max: | 100 °C |
| Efficiency: | 90 % |
| Direction of Rotation: | CW |
`
